Stylish and Modern Design
- Built-in Sensor: Only turns lights on when movement is detected, ensuring energy efficiency.
- Easy Self Installation: Quick and simple setup with no complicated wiring needed.

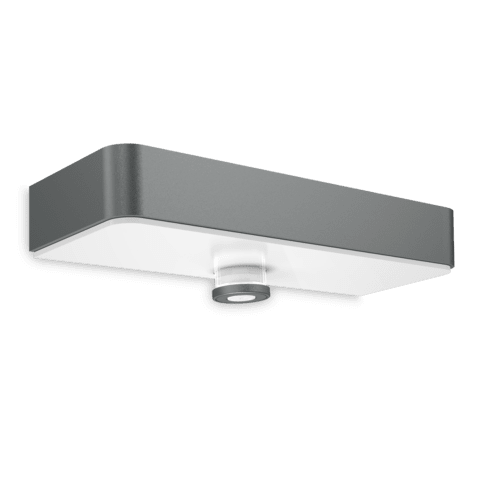

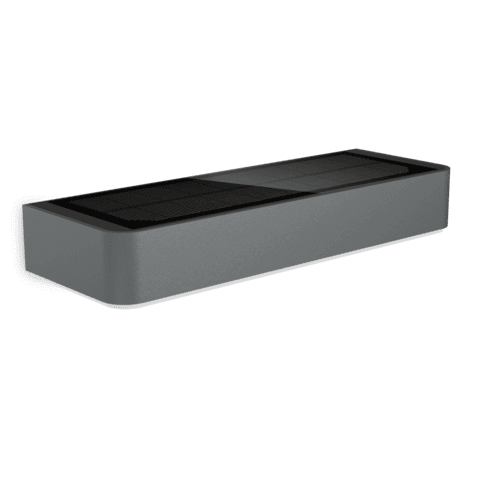

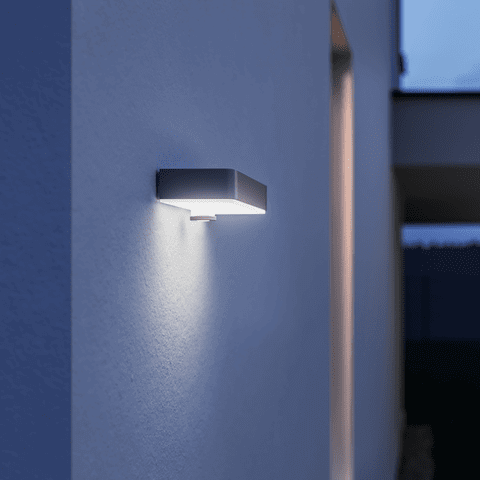

Let's the sun shine everywhere. No connection to the power supply, no energy costs, and yet 365 days of light a year. The sensor-switched outdoor light with a monocrystalline glass solar panel and extra-powerful lithium-iron phosphate rechargeable batteries makes this possible. With a 360° infrared mini sensor, 6 m reach, 140 lm luminous flux, and a patented, intelligent microprocessor control system, this light is efficient and reliable. Features include a night-light function and soft light start.
Available in anthracite.
| Dimensions (L x W x H) | 91 x 242 x 53 mm |
| Sensor Technology | passive infrared |
| Output | 1,5 W |
| Luminous flux | 140 lm |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM5 |
| Colour Rendering Index | 80-89 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| Drop in luminous flux in accordance with LM80 | L70B10 |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Capability of masking out individual | Yes |
| segments | |
| Electronic scalability | No |
| Mechanical scalability | No |
| Reach, radial | Ø 4 m (13 m²) |
| Reach, tangential | Ø 14 m (154 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 lx |
| Time setting | 10 s - 0,5 Min. |
| Basic light level function | Yes |
| Basic light level function time | all night |
| Functions | Motions sensor |
| Soft light start | Yes |
| Impact resistance | IK03 |
| IP-rating | IP44 |
| Protection class | III |
| Ambient temperature | -20 - 40 °C |
| Housing material | Aluminium |
| Cover material | Plastic, structured |
| Manufacturer's Warranty | 3 years |
| Settings via | Potentiometers |
| Installation site | wall |
| Version | Anthracite / Silver |
| PU1, EAN | 4007841 052959 |
----------
