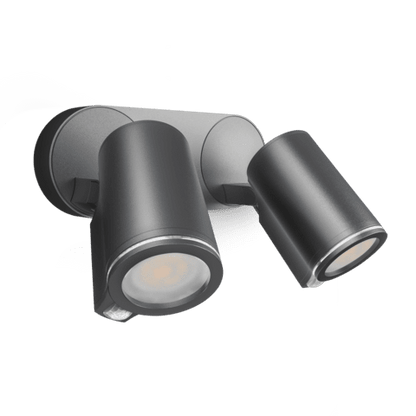

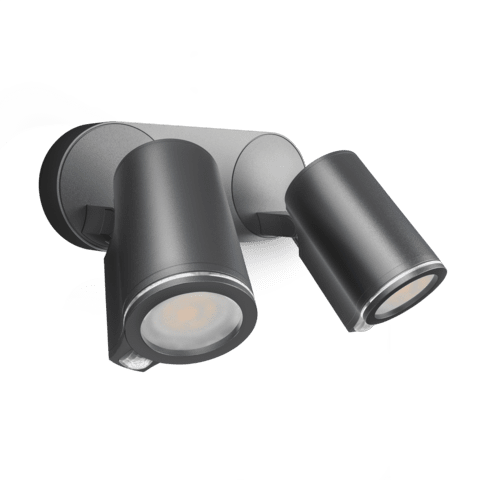

Modern Design Meets Powerful Illumination
The Spot DUO wall spotlight series delivers sleek aesthetics and outstanding lighting performance. With its unmistakably clean-cut design and advanced functionality, it enhances any modern outdoor space while ensuring optimal visibility and safety.
Offering a powerful 2 x 520 lumens of brightness at just 2 x 7W, this energy-efficient spotlight provides targeted illumination where it's needed. The individual LED spots can rotate 180° and tilt 90°, allowing for precise positioning to highlight architectural features, pathways, or entryways.
Key Features:
- Dual Adjustable Spotlights: Each light rotates 180° and tilts 90° for customisable illumination.
- Smart Motion Detection: Two 90° infrared sensors detect movement up to 10m for automatic lighting.
- Customisable Light Control: Selectable time and twilight threshold settings.

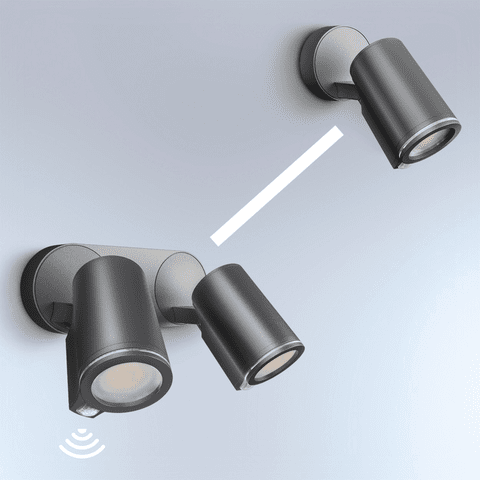

- Bluetooth Smart Connectivity (SC Model): Wireless control, grouping, and customisation via the STEINEL Connect App.
- Energy-Efficient LED Technology: High-performance illumination with minimal power consumption.
- Replaceable LED Bulbs Included: Comes ready to install with premium LED lamps.

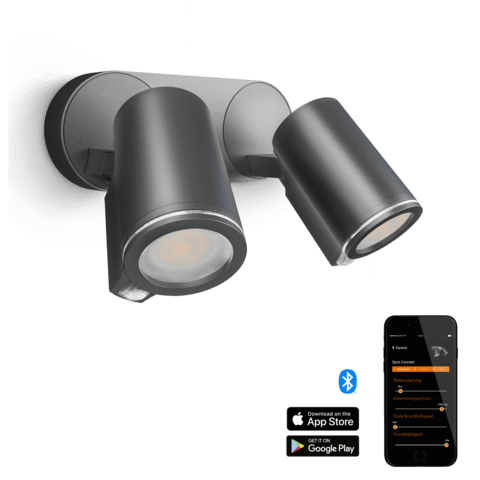

For smart, connected lighting, the Spot DUO SC model offers **Bluetooth-based control**, allowing you to create lighting groups and adjust settings conveniently via the app. Whether for security, ambiance, or highlighting key areas, the Spot DUO series delivers a perfect combination of design and performance.
| Category | Specification |
|---|---|
| Dimensions (L x W x H) | 175 x 247 x 98 mm |
| With lamp | Yes, LED lamp |
| With motion detector | Yes |
| Manufacturer's Warranty | 3 years |
| Settings via | Bluetooth |
| Version | With motion detector & Bluetooth |
| PU1, EAN | 4007841058654 |
| Application, place | Outdoors |
| Application, room | Outdoors, all around the building, terrace/balcony, courtyard & driveway |
| Colour | Anthracite |
| Includes corner wall mount | No |
| Installation site | Wall |
| Installation | Wall, Surface wiring |
| Impact resistance | IK03 |
| IP-rating | IP44 |
| Protection class | I |
| Ambient temperature | From -20 up to 40 °C |
| Housing material | Aluminium |
| Cover material | Plastic, transparent |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Output | 14.6 W |
| Mounting height max. | 2.50 m |
| Slave mode selectable | Yes |
| Sneak-by guard | No |
| Capability of masking out individual segments | No |
| Electronic scalability | No |
| Mechanical scalability | No |
| Reach, radial | r = 2 m (3 m²) |
| Reach, tangential | r = 10 m (79 m²) |
| Optimum mounting height | 2 m |
| Detection angle | 90° |
| Photo-cell controller | Yes |
| Luminous flux total product | 1024 lm |
| Measured luminous flux (360°) | 1024 lm |
| Total product efficiency | 70.1 lm/W |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM5 |
| Lamp | LED can be replaced |
| Service life LED L70B50 (25°) | > 20000 h |
| Soft light start | No |
| Continuous light | Selectable, 4h |
| Colour Rendering Index (CRI) | = 81 |
| Article number | 058654 |
| European Article Number (EAN) | 4007841058654 |
| Functions | Timer, Master/slave override |
| Twilight setting | 2 – 2000 lx |
| Time setting | 5 s – 60 min |
| Basic light level function | No |
| Main light adjustable | No |
| Twilight setting TEACH | Yes |
| Interconnection | Yes |
| Interconnection via | Bluetooth |
| Product category | Sensor-switched LED floodlight |
