Advanced Motion Detection for Indoors and Outdoors

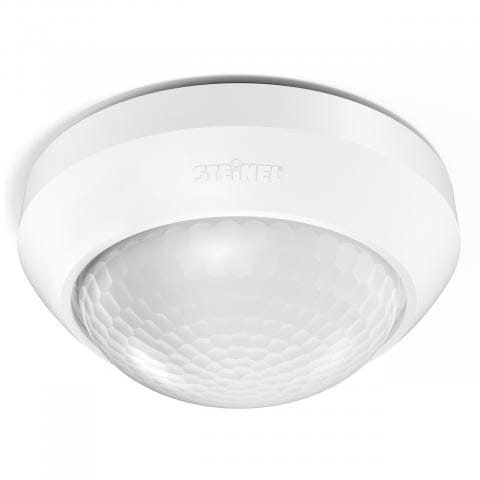

The Steinel Infrared Ceiling Sensor combines cutting-edge technology with effortless installation, making it the ultimate choice for reliable motion detection. Designed for both residential and commercial spaces, this surface-mounted sensor ensures maximum coverage and flexibility to meet all your needs.
- 360° Coverage: Equipped with three advanced pyro sensors for full-circle motion detection.
- Impressive Range: Detects motion up to 24 metres, ensuring reliability in larger spaces.
- Customisable Detection Zone: Tailor the coverage area to your specific requirements using shrouds.
- Effortless Installation: Clever installation concept allows for quick and simple setup, saving you time and effort.

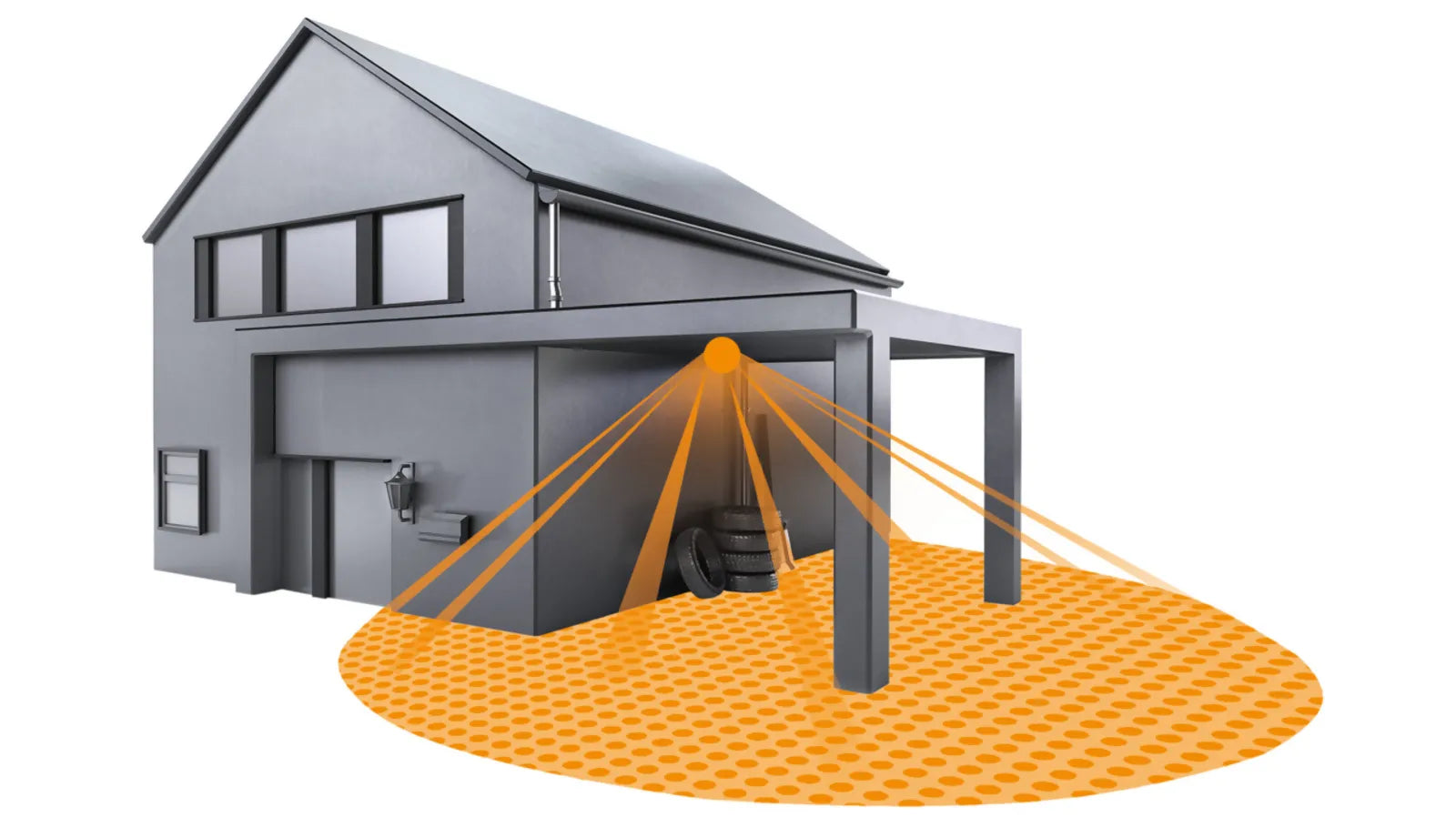

- Versatile Applications: Perfect for soffits, carports, corridors, and other indoor or outdoor spaces.
The Steinel Infrared Ceiling Sensor offers sophisticated technology in an easy-to-install package, making it the perfect solution for seamless motion detection in any environment.
| General | |
|---|---|
| Dimensions (Ø x H) | 121 x 57 mm |
| With motion detector | Yes |
| Manufacturer's Warranty | 5 years |
| Settings via | Potentiometers |
| With remote control | No |
| Version | White |
| PU1, EAN | 4007841057770 |
| Type | Motion detectors |
| Application, place | Outdoors, Indoors |
| Application, room | Corridor / aisle, changing room, function room / ancillary room, kitchenette, stairwell, WC / washroom, multi-storey / underground car park, outdoors, warehouse, Indoors |
| Colour | White |
| Colour, RAL | 9010 |
| Fixation/mounting | |
| Includes corner wall mount | No |
| Installation site | Ceiling |
| Installation | Surface wiring, Ceiling |
| Housing | |
| IP-rating | IP54 |
| Protection class | II |
| Ambient temperature | -20 – 50 °C |
| Material | Plastic |
| Electrical equipment | |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Switching output 1, resistive | 2000 W |
| Switching output 1, number of LEDs / fluorescent lamps | 8 stk. |
| Switching output 1, floating | No |
| Fluorescent lamps, electronic ballast | 1500 W |
| Fluorescent lamps, uncorrected | 500 VA |
| Fluorescent lamps, series-corrected | 900 VA |
| Fluorescent lamps, parallel-corrected | 400 VA |
| Switching output 1, low-voltage halogen lamps | 2000 VA |
| LED lamps < 2 W | 100 W |
| LED lamps > 2 W < 8 W | 300 W |
| LED lamps > 8 W | 600 W |
| Capacitive load in μF | 176 µF |
| Power consumption | 0.56 W |
| General information | |
| Article number | 057770 |
| European Article Number (EAN) | 4007841057770 |
| Detection angle | 360 ° |
| Angle of aperture | 90 ° |
| Sensor technology | |
| Technology, sensors | Passive infrared, Light sensor |
| Mounting height | 2.50 – 6.00 m |
| Mounting height max. | 6.00 m |
| Optimum mounting height | 2.8 m |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |
| Reach, radial | Ø 6 m (28 m²) |
| Reach, tangential | Ø 24 m (452 m²) |
| Switching zones | 972 |
| Cover material | Shrouds |
| Functions | |
| Twilight setting | 2 – 1000 lx |
| Time setting | 5 s – 15 Min. |
| Basic light level function | No |
| Main light adjustable | No |
| Twilight setting TEACH | No |
| Constant-lighting control | No |
| Connection | |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Interconnection via | Cable |
| Interconnection, number | Max 5 sensors |
----------
Download Datasheet - IS 2360-3 White
Download Datasheet - IS 2360-3 Black
Download Instruction Manaul
No Reviews Yet...
