Enhance Your Outdoors with Elegant Accent Lighting

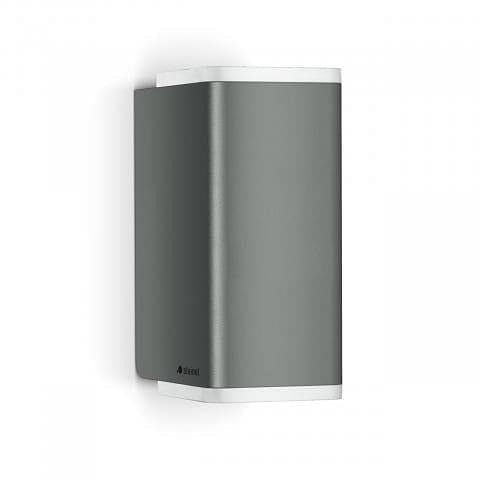

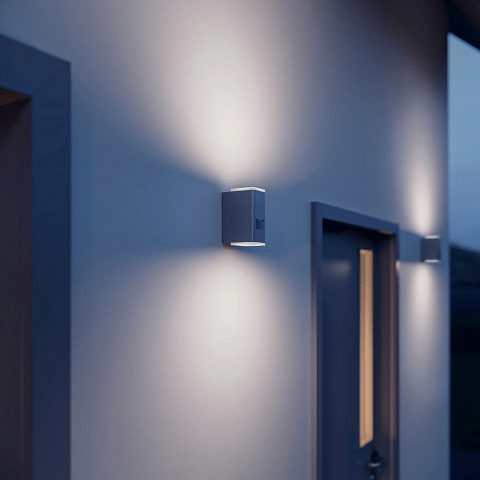

The Steinel L 930 LED Up/Down Wall Light delivers stunning visual appeal and practical functionality for modern outdoor spaces. With its stylish up/downlight design, this sophisticated outdoor light bathes exterior walls in warm white light, creating a striking visual effect that elevates your home’s aesthetic.
- Elegant Accent Lighting: Highlights building facades with warm white illumination (3000 K) for a sleek and modern appearance.

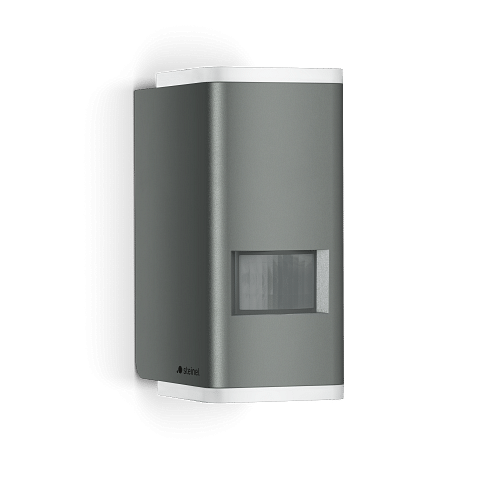

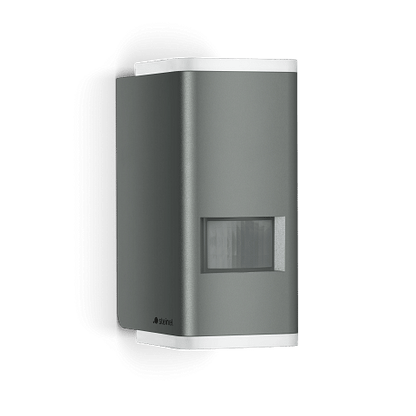

- Integrated Motion Sensor: Equipped with a 140° infrared sensor offering a reach of 12 m for reliable motion detection.
- Customisable Operation: Features adjustable stay-ON times (2 or 15 minutes), optional effect lighting, and a 4-hour manual override for continuous illumination.
- Interconnectable Design: Connect multiple lights by cable to synchronise ON/OFF functionality across your property.
- Energy-Efficient Performance: Operates at just 9.3 W while delivering exceptional brightness and longevity.
- Premium Build Quality: Made from high-quality aluminium for a durable and stylish finish that withstands outdoor conditions.
The L 930 LED Up/Down Wall Light combines form and function, making it the ideal choice for adding a modern and sophisticated touch to your outdoor spaces.
| Dimensions (L x W x H) | 92 x 63 x 137 mm |
| Mains power supply | 220 - 240 V / 50 - 60 Hz |
| Sensor Technology | passive infrared |
| Output | 9,3 W |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Interconnection, number | 10 lights max. |
| Interconnection via | Cable |
| Slave modeselectable | No |
| Luminous flux | 457 lm |
| Overall product efficiency | 49 lm/W |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index | 82 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (25 °C) | > 60000 h |
| Drop in luminous flux in accordance with LM80 | L70B10 |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 140 ° |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Reach, radial | r = 2 m (5 m²) / r = 4 m (20 m²) |
| Reach, tangential | r = 5 m (31 m²) / r = 12 m (176 m²) |
| Continuous light | selectable, 4h |
| Photo-cell controller | Yes |
| Twilight setting | 2 - 20 lx |
| Time setting | 120 s - 15 Min. |
| Basic light level function | Yes |
| Basic light level function, detail | LED effect light |
| Basic light level function time | all/half night |
| Main light adjustable | No |
| Functions | Motions sensor, Light sensor, Normal / test mode, Orientation light |
| Soft light start | Yes |
| Impact resistance | IK03 |
| IP-rating | IP44 |
| Protection class | I |
| Ambient temperature | -20 - 40 °C |
| Housing material | Aluminium |
| Cover material | Plastic, opal |
| Manufacturer's Warranty | 3 years |
| Settings via | DIP switches |
| With remote control | No |
| Installation site | wall |
| Version | Anthracite |
----------
