Digital. Interconnected. Intelligent Outdoor Lighting

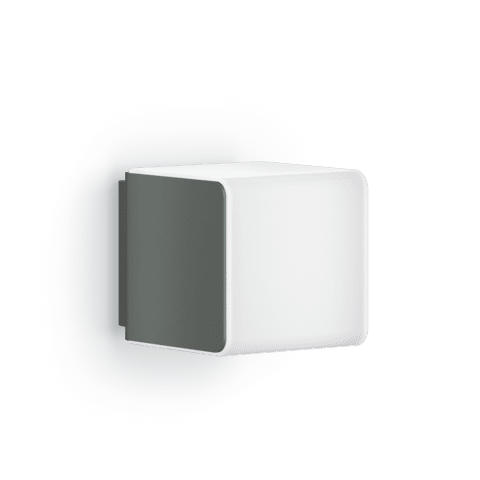

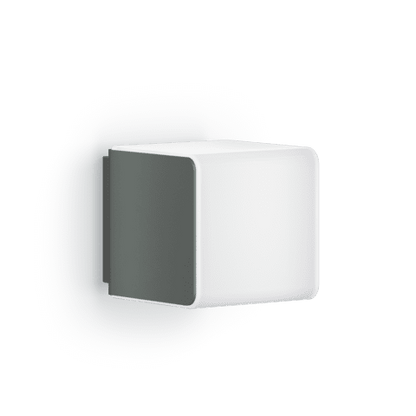

The Steinel L 830 Outdoor Sensor Light is the perfect fusion of sophisticated design and advanced technology. These elegant wall lights elevate any facade with their stylish appearance and smart functionality, delivering performance that meets the highest standards.
- Intelligent Sensor Technology: Features a concealed 160° iHF sensor with a 5 m range, precisely tuned to detect human movement while ignoring pets, leaves, and other non-relevant motion.

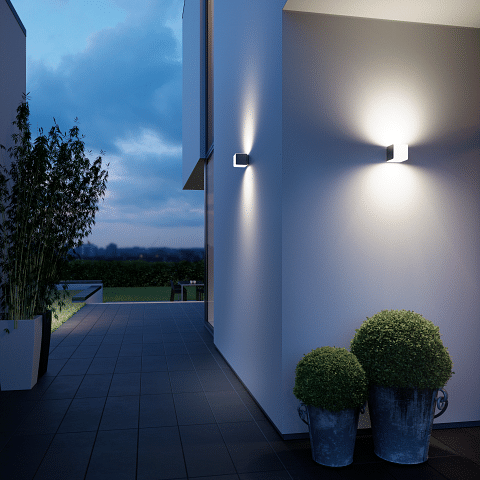

- Warm and Inviting Illumination: Provides warm-white light (3000 K) for a welcoming ambiance, ideal for building entrances and facades.
- Customisable Lighting Modes: Includes a night-light function (10-50%), elegant soft light start, and a 4-hour manual override for extended use.

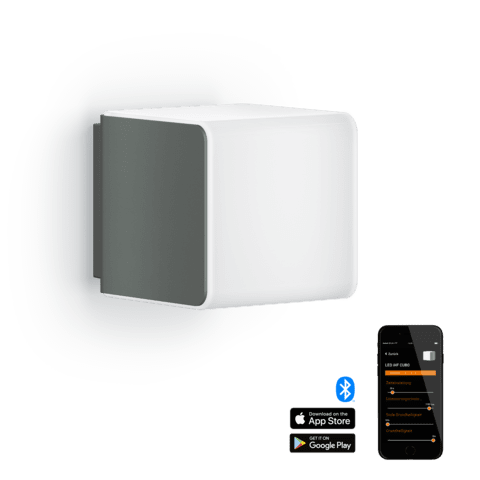

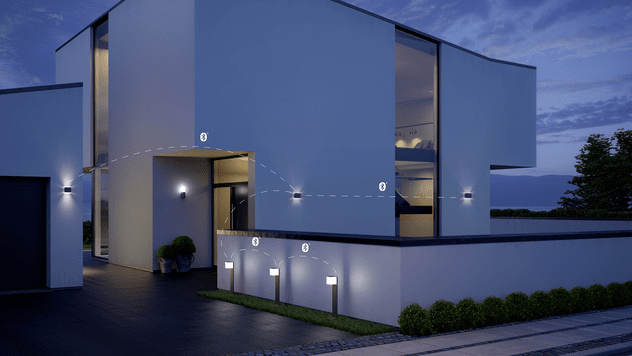

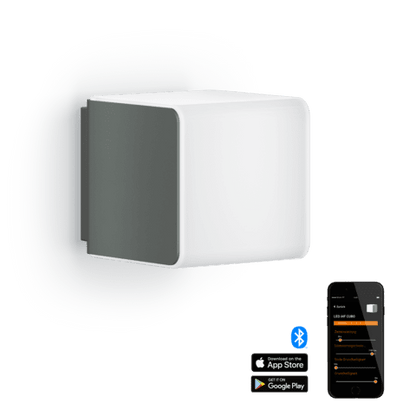

- Smart Bluetooth Connectivity: Wirelessly interconnect and manage settings via the STEINEL app for complete control and convenience.
- Multiple Design Options: Choose from three sleek designs with various light patterns, available in anthracite or silver finishes.
- Refined Aesthetic: Enhances the appearance of any outdoor space, combining timeless style with innovative performance.
The L 830 Outdoor Sensor Light delivers exceptional lighting, intuitive technology, and elegant design, making it an outstanding choice for modern facades and outdoor spaces.
| Dimensions (L x W x H) | 132 x 110 x 110 mm |
| Mains power supply | 220 - 240 V / 50 - 60 Hz |
| Sensor Technology | iHF (intelligent high-frequency technology) |
| Output | 9,1 W |
| Power consumption | 0,44 W |
| Interconnection | Yes |
| Interconnection via | Bluetooth |
| Slave modeselectable | Yes |
| Luminous flux | 493 lm |
| Stroboscopic effect (SVM) | 0,6 SVM |
| Efficiency | 54 lm/W |
| Efficiency (without shade/diffuser) | 86 lm/W |
| Overall product efficiency | 54 lm/W |
| Colour temperature | 3000 K |
| Colour Rendering Index | 80-89 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| LED life expectancy (25 °C) | > 60000 h |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 160 ° |
| Angle of aperture | 160 ° |
| Capability of masking out individual segments | Yes |
| Electronic scalability | Yes |
| Mechanical scalability | Yes |
| Continuous light | selectable, 4h |
| Photo-cell controller | Yes |
| Twilight setting | 2 - 2000 lx |
| Time setting | 5 s - 60 Min. |
| Basic light level function | Yes |
| Basic light level function time | 10/30 min, all night |
| Main light adjustable | 10 - 100 % |
| Functions | Motions sensor, Selecting programmed lighting scenarios, Lighting scenario, Night economy mode |
| Soft light start | Yes |
| Impact resistance | IK03 |
| IP-rating | IP44 |
| Protection class | II |
| Ambient temperature | -20 - 40 °C |
| Housing material | Plastic |
| Cover material | Plastic, opal |
| Manufacturer's Warranty | 3 years |
| Settings via | Bluetooth, App, Smartphone |
| With remote control | No |
| Installation site | wall |
| Version | Anthracite |
----------
