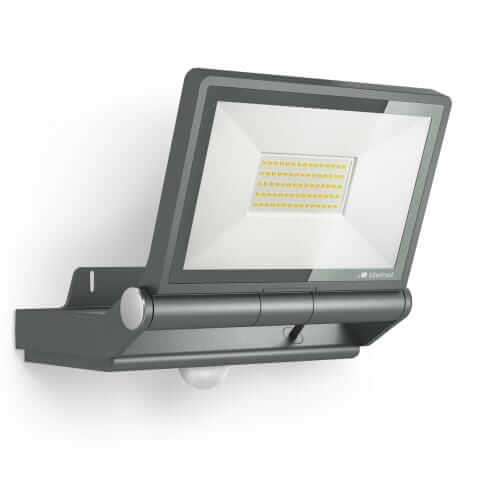

Floodlights Redefined
“Bright” isn’t the word. It’s at least not adequate to describe the powerful light output of the XLED PRO ONE series. These strikingly designed, modern floodlights bathe the world around them in light as bright as day over a wide area – and provide first-class illumination right into every nook and cranny. The sophisticated aluminium enclosure lends the XLED PRO ONE series an especially high-quality appearance.
- Highly Efficient Lighting: Offers three different intensities: XLED PRO ONE S (2200 lm at 18.5 W), XLED PRO ONE Plus S (4450 lm at 33.7 W), and XLED PRO ONE Max S (6350 lm at 50.5 W), with top-tier illumination.
- Smart Connectivity: The floodlights are networked with a cable and adjusted by potentiometer using the supplied RC12 remote control or via the STEINEL app for easy customization.
- Basic Light Function: Includes a convenient 10% basic light function, ideal for consistent, low-level illumination.
- Versatile Mounting: Features an optional surface-mounting adapter for flexible installation.
- Advanced Motion Detection: Equipped with a 240° infrared sensor with a 10-metre range and plug-in cover caps for precise detection zone definition.
- Durability: Designed for outdoor use with a robust construction and a 5-year guarantee, ensuring long-lasting performance.
- Sensor & Non-Sensor Options: Available in both sensor and manual switch versions to suit your specific needs.
The XLED PRO ONE series delivers cutting-edge lighting technology, combining superior performance, sleek design, and ease of use for all your outdoor illumination needs.
| Dimensions (L x W x H) | 222 x 259 x 215 mm |
| Mains power supply | 220 - 240 V / 50 - 60 Hz |
| Sensor Technology | passive infrared |
| Output | 42,6 W |
| Luminous flux | 4200 lm |
| Overall product efficiency | 99 lm/W |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index | 80-89 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| LED life expectancy (25 °C) | > 36000 h |
| Drop in luminous flux in accordance with LM80 | L70B10 |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 180 ° |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |
| Reach, radial | r = 3 m (14 m²) |
| Reach, tangential | r = 12 m (226 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 - 2000 lx |
| Time setting | 8 s - 35 Min. |
| Basic light level function | No |
| IP-rating | IP44 |
| Protection class | I |
| Ambient temperature | -20 - 40 °C |
| Housing material | Aluminium |
| Manufacturer's Warranty | 3 years |
| Settings via | Potentiometers |
| Version | Anthracite / white |
----------
