Floodlights Redefined

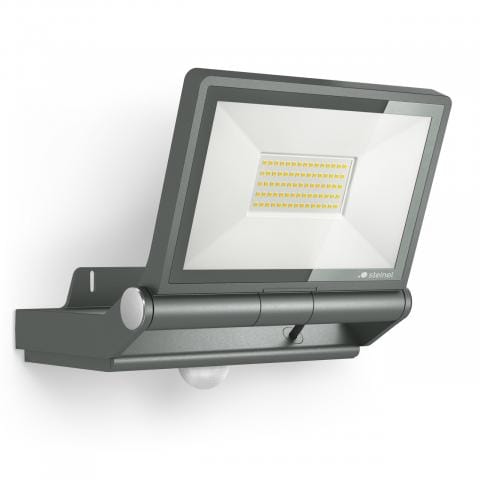

“Bright” isn’t the word. It’s at least not adequate to describe the powerful light output of the XLED PRO ONE series. These strikingly designed, modern floodlights bathe the world around them in light as bright as day over a wide area – and provide first-class illumination right into every nook and cranny.
- Sophisticated Design: The XLED PRO ONE series features a high-quality aluminium enclosure for an elegant and durable finish.
- Wide Area Coverage: Delivers impressive light output with excellent coverage, ensuring every corner is well-lit.
- Flexible Adjustment: Networked by cable, adjusted via potentiometer or remote control, and easily controlled with the STEINEL app for convenience.
- Basic Light Function: Includes a convenient basic light function (10%) for added energy efficiency.
- Versatile Mounting Options: Features an optional surface-mounting adapter for easy installation in different settings.
- Energy Efficient: Offers high efficiency with three different light intensities: 2200 lm at 18.5 W, 4450 lm at 33.7 W, and 6350 lm at 50.5 W.
- Motion Sensor: Equipped with a 240° infrared sensor with a 10-meter range and plug-in cover caps to customize the detection zone.
- Manual Option: Available in both sensor versions and manual switch versions without sensors.
- 5-Year Guarantee: All six product variants in the XLED PRO ONE series come with a 5-year guarantee for long-lasting reliability.
For a floodlight that combines modern design, efficient performance, and high-quality illumination, the XLED PRO ONE series is the ultimate choice for your outdoor lighting needs.
|
Dimensions (L x W x H)
|
182 x 229 x 230 mm |
|
Mains power supply
|
220 – 240 V / 50 – 60 Hz
|
|
Mounting height max.
|
6,00 m
|
|
Sensor Technology
|
passive infrared
|
|
Output
|
18,4 W |
|
Interconnection
|
Yes
|
|
Measured luminos flux (360°)
|
2204 lm |
|
Colour temperature
|
3000 K
|
|
Colour variation LED
|
SDCM3
|
|
Colour Rendering Index
|
80-89
|
|
With lamp
|
Yes, STEINEL LED system
|
|
Lamp
|
LED cannot be replaced
|
|
LED life expectancy (max. °C)
|
50000 Std
|
|
Drop in luminous flux in accordance with LM80
|
L70B10
|
|
LED cooling system
|
Passive Thermo Control
|
|
With motion detector
|
Yes
|
|
Detection angle
|
240 °
|
|
Angle of aperture
|
180 °
|
|
Sneak-by guard
|
Yes
|
|
Capability of masking out individual segments
|
No
|
|

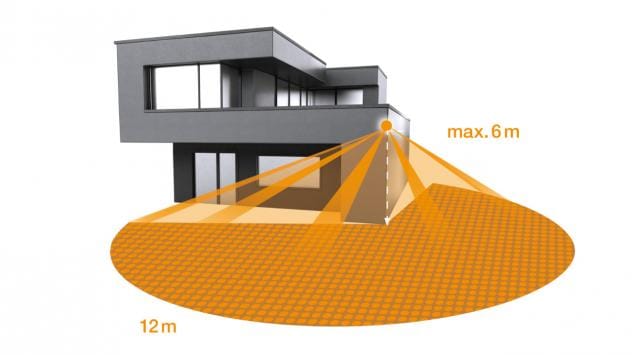

Reach, radial
|
r = 3 m (19 m²)
|
|
Reach, tangential
|
r = 12 m (302 m²)
|
|
Photo-cell controller
|
Yes
|
|
Twilight setting
|
2 – 2000 lx
|
|
Time setting
|
8 s – 35 Min.
|
|
Basic light level function
|
Yes
|
|
Basic light level function time
|
10/30 min, all night
|
|
Functions
|
DIM function, Light sensor, Motions sensor, Orientation light
|
|
Main light adjustable
|
No
|
|
Soft light start
|
Yes
|
|
Impact resistance
|
IK03
|
|
IP-rating
|
IP44
|
|
Protection class
|
I
|
|
Ambient temperature
|
-20 – 40 °C
|
|
Housing material
|
Aluminium
|
|
Cover material
|
Glass transparent
|
|
Manufacturer's Warranty
|
5 years
|
|
PU1, net weight
|
1,43 kg
|
----------
