Perfect Detection. Targeted Illumination.

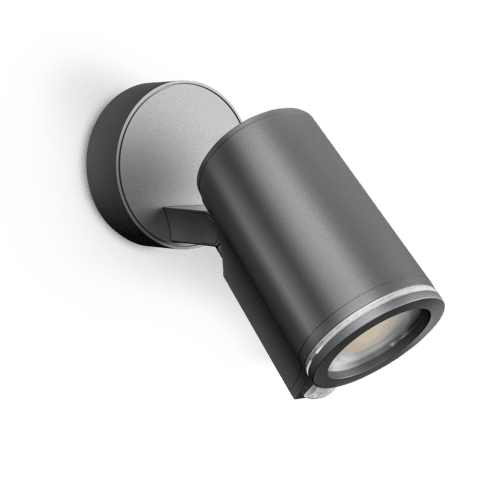

Designed for style and precision, the Spot ONE spotlight series offers exceptional lighting control with a modern, minimalist design. With 512 lumens of warm white light at 3000K, it provides targeted illumination around any building.
The adjustable spotlight head rotates 180° and tilts 90°, allowing effortless positioning for optimal lighting. Available in three versions, the Spot ONE series offers a tailored solution for every need.
Available Models:
- Spot ONE S: Features a 90° infrared motion sensor with a 10m detection range for automatic lighting.

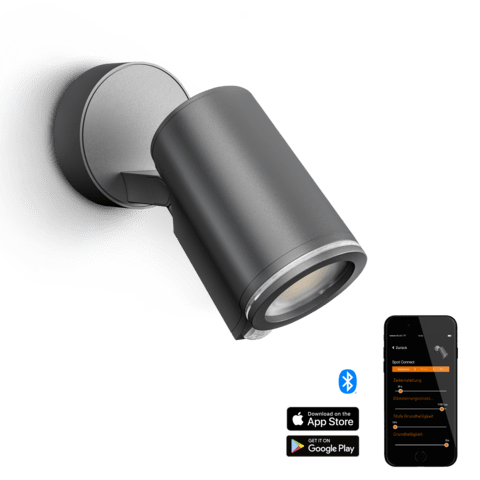

- Spot ONE SC: Includes the same motion sensor but adds **Bluetooth connectivity** for wireless control, grouping, and settings via the STEINEL Connect App.
- Spot ONE: A version without a sensor for traditional lighting applications.
Key Features:
- Modern Purist Design: Sleek, stylish, and highly functional.
- Adjustable Light Direction: 180° rotation and 90° tilt for precise illumination.

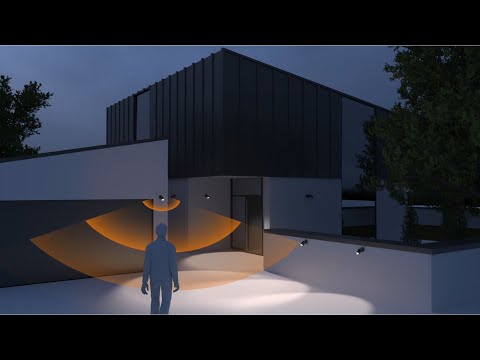

- Smart Motion Detection: Infrared sensor (90° coverage, 10m range) in sensor models.
- Wireless Control (SC Model): Bluetooth connectivity for easy settings and interconnection.
- Energy-Efficient LED: Includes a replaceable GU-10 LED lamp (512 lm, 3000K).
Whether you need motion-activated lighting, smart wireless control, or a classic spotlight, the Spot ONE series offers a solution to match your needs.
| General Information | |
|---|---|
| Dimensions (L x W x H) | 175 x 97 x 98 mm |
| With lamp | Yes, LED lamp |
| With motion detector | Yes |
| Manufacturer's Warranty | 3 years |
| Settings via | Bluetooth |
| Version | With motion detector & Bluetooth |
| PU1, EAN | 4007841058630 |
| Application, place | Outdoors |
| Application, room | Outdoors, all round the building, terrace / balcony, courtyard & driveway |
| Colour | Anthracite |
| Fixation/mounting | Includes corner wall mount |
| Installation site | Wall |
| Installation | Wall, Surface wiring |
| Housing | |
| Impact resistance | IK03 |
| IP-rating | IP44 |
| Protection class | I |
| Ambient temperature | from -20 up to 40 °C |
| Housing material | Aluminium |
| Cover material | Plastic, transparent |
| Electrical equipment | |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Output | 7.9 W |
| Sensor technology | |
| Mounting height max. | 2.50 m |
| Slave mode selectable | Yes |
| Sneak-by guard | No |
| Reach, radial | r = 2 m (3 m²) |
| Reach, tangential | r = 10 m (79 m²) |
| Optimum mounting height | 2 m |
| Detection angle | 90° |
| Luminaire | |
| Photo-cell controller | Yes |
| Luminous flux total product | 512 lm |
| Colour temperature | 3000 K |
| Lamp | LED can be replaced |
| Service life LED L70B50 (25°) | > 20000 h |
| Twilight setting | 2 – 2000 lx |
| Time setting | 5 s – 60 Min. |
| Functions | Manual ON / ON-OFF, Master/slave override, Timer |
| Connection | Interconnection via Bluetooth |
| Product category | Sensor-switched LED floodlight |
