Feature |
Specification |

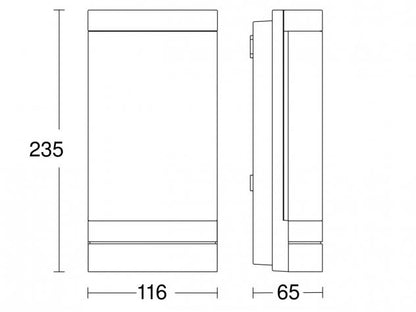

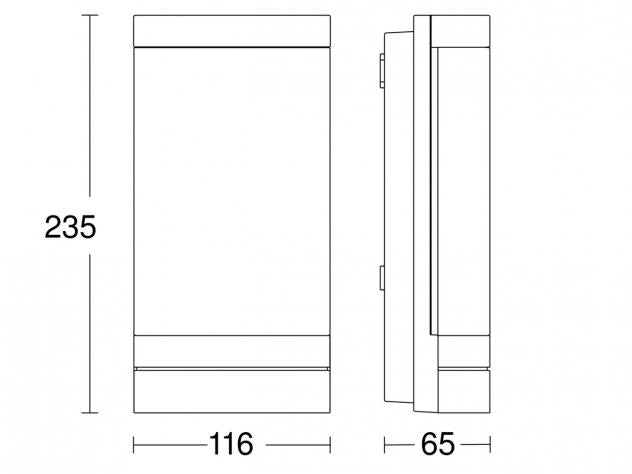

Dimensions (L x W x H) |
65 x 116 x 235 mm |
With lamp |
Yes, STEINEL LED system |
Manufacturer's Warranty |
3 years |
Settings via |
App, Smartphone, Tablet, Connect Bluetooth Mesh |
With remote control |
No |
Version |
with motion detector & Bluetooth |
PU1, EAN |
4007841067212 |
Application, place |
Outdoors |
Application, room |
garden, front door, all round the building, terrace / balcony |
Colour |
Anthracite |
Fixation/ mounting |
|
includes sheet of self-adhesive numbers |
No |
Installation site |
wall |
Housing |
|
Impact resistance |
IK03 |
IP-rating |
IP44 |
Protection class |
II |
Ambient temperature |
-10 – 40 °C |
Housing material |
Aluminium |
Cover material |
Plastic, opal |
Electrical equipment |
|
Mains power supply |
220 – 240 V / 50 – 60 Hz |
Output |
6.6 W |
Average rated life expectancy of power supply unit at 25°C |
> 60000 h |
Sensor technology |
|
Mounting height max. |
2.50 m |
Slave mode selectable |
Yes |
Sneak-by guard |
Yes |
Capability of masking out individual segments |
Yes |
Electronic scalability |
Yes |
Mechanical scalability |
No |
Reach, detail |
3 detection zones can be (de)activated individually, range can be set separately |
Reach, radial |
r = 6 m (57 m²) |
Reach, tangential |
r = 8 m (101 m²) |
Optimum mounting height |
2 m |
Detection angle |
180 ° |
Luminaire |
|
Luminous flux total product |
566 lm |
Measured luminous flux (360°) |
566 lm |
Total product efficiency |
85 lm/W |
Colour temperature |
3000 K |
Lamp |
LED cannot be replaced |
Service life LED L70B50 (25°) |
> 60000 h |
Soft light start |
Yes |
Continuous light |
selectable |
Colour Rendering Index CRI |
= 82 |
General information |
|
Article number |
067212 |
European Article Number (EAN) |
4007841067212 |
Basic light level function in per cent |
10 – 100 % |
Basic light level function percentage, from |
10 % |
Basic light level function percentage, up to |
100 % |
Functions |
|
Twilight setting |
2 – 2000 lx |
Time setting |
10 s – 60 Min. |
Basic light level function |
Yes |
Basic light level function, detail |
LED effect light |
Basic light level function time |
10s-60 min, OFF, Brightness-controlled |
Main light adjustable |
10 - 100 % |
Twilight setting TEACH |
Yes |
Connection |
|
Interconnection |
Yes |
Interconnection via |
Bluetooth Mesh Connect |
