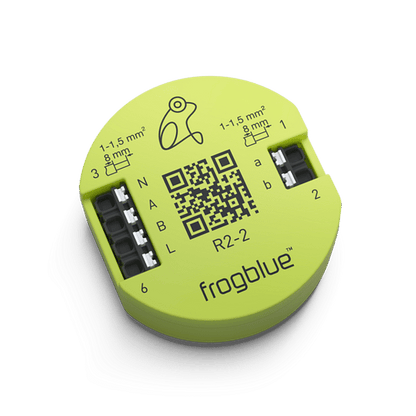

Multifunctional 2-channel relay switch with 2 outputs for controlling shutters/blinds and other motors. Also 2 inputs for integration/query of additional switches and sensors (110-240 V~). Featuring integrated logic module with comfort and timer functions, power measurement and excess current detection (total: 1200 W@230V).
| Inputs | 2 (AC 110–240 V ~) |
| Outputs | 2 (AC 110–240 V ~) |
| Outputs can be dimmed | No |
| Maximum Power per output | Light bulbs/LEDs, HV halogen bulbs: 1200 W (220-240 V ~), 600 W (110-219 V~), capacitive load: maximum 6A (110-240 V~), electronic transformer: 600 VA (220-240 V~), 300VA (110-219 V~) |
| Integrated logic module | Yes |
| Integrated configuration backup | Yes |
| Comfort and timer functions | Yes |
| Power measurement | Yes |
| Short circuit detection and notification | No |
| Motor control | Yes |
| Size and Weight | |
|---|---|
| Dimensions (L x B x H) | 53 x 48 x 21 |
| Power supply | |
| Mains voltage | AC 110–240 V~ |
| Stand-by consumption | < 190 mW |
| Network | |
| WLAN | No |
| Bluetooth® | Bluetooth® 4.2 Low Energy |
| Frequency range | 2400–2483,5 MHz max. 2,9 dBm |
| Typical radio open field range | 30 Meter |
| Operation & Storage | |
| Ambient temperature | –25°C bis +50°C |
| Storage temperature | –25°C bis +70°C |
| Air humidity (during operation) | (Non-condensing) |
| Connection | |
| Type of contact | μ, closing contact |
| Connection variants | roller blind/roller shutter motor, lamps, buttons, switches etc. |
| Connection type | Spring-type terminal (single wire) |
| Core cross-section | 1 - 1,5 mm2 (rigid ladder recommended) |
| Stripping length | 8 mm |
| Packaging | |
| Packaging size | 1 unit, 10 units |
| EAN 1 unit | 4260578530248 |
| Packaging dimensions (L x B x H) 1 Stück | 75 × 30 × 75 mm |
| Weight including packaging 1 unit | 52 g |
| Weight including packaging, 10 pieces | 528 g |
| Mounting Type | |
| Mounting type | Flush-mounted (in device box according to DIN 49073) |
| Material data | |
| Weight | 39 g |
| Technical data | |
| Degree of protection | Conforms to IP20 |
| Mains frequency | 50 / 60 Hz |
----------
