Tasteful Design Meets Intelligent Lighting

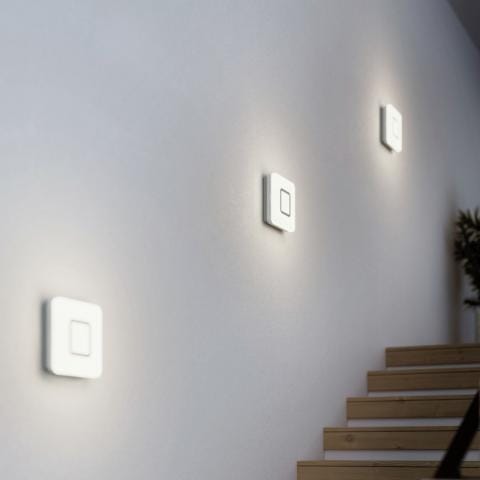

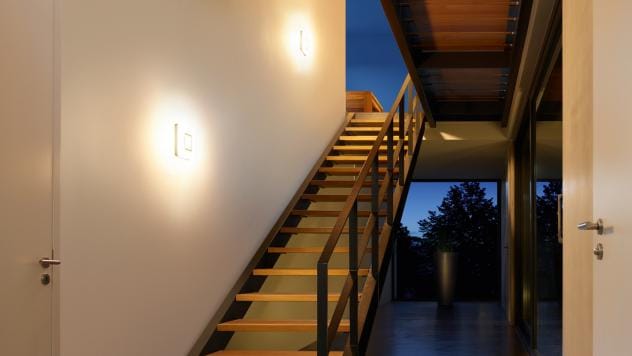

The Steinel LED M1 Wall Sensor Light is the perfect choice for stylish and functional indoor lighting. Combining sleek aesthetics, intelligent sensor technology, and energy efficiency, this modern indoor light is ideal for walls and ceilings in corridors, stairwells, and hallways. Offering optimum illumination and tasteful ambient lighting, it’s a practical yet elegant solution for any interior.
- Intelligent High-Frequency Sensor: Features a concealed 360° motion detector with an adjustable range of 3–8 metres for precise lighting activation.
- Energy-Efficient Performance: Delivers 759 lumens of warm white light (3000 K) while consuming just 8.8 W, reducing energy costs.
- Ambient Lighting Features: Includes a convenient night-light function at 10% brightness for added comfort and style.
- Customisable Options: Equipped with a 4-hour manual override for flexible lighting control.
- Versatile Installation: Suitable for both wall and ceiling mounting, making it adaptable to various indoor spaces.
With its sleek stainless-steel design, advanced features, and energy efficiency, the Steinel LED M1 Wall Sensor Light is the perfect addition to modern interiors, ensuring both practicality and elegance.
| Dimensions (L x W x H) | 53 x 200 x 200 mm |
| Mains power supply | 220 - 240 V / 50 - 60 Hz |
| Sensor Technology | High frequency |
| HF-system | 5,8 GHz |
| Output | 8,8 W |
| Power consumption | 0,39 W |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Interconnection via | Cable |
| Luminous flux | 759 lm |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index | 82 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 60000 h |
| Drop in luminous flux in accordance | L70B10 |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection | also through glass, wood and stud walls |
| Detection angle | 360 ° |
| Angle of aperture | 160 ° |
| Capability of masking out individual segment | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Reach, radial | Ø 8 m (50 m²) |
| Reach, tangential | Ø 8 m (50 m²) |
| Continuous light | selectable, 4h |
| Photo-cell controller | Yes |
| Twilight setting | 2 - 2000 lx |
| Time setting | 5 s - 15 Min. |
| Basic light level function | Yes |
| Basic light level function time | 10/30 min, all night |
| Soft light start | No |
| Impact resistance | IK03 |
| IP-rating | IP20 |
| Protection class | II |
| Ambient temperature | -10 - 30 °C |
| Housing material | Plastic |
| Cover material | Plastic, opal |
| Manufacturer's Warranty | 3 years |
| Settings via | Potentiometers |
| With remote control | No |
| Installation site | wall, ceiling |
| Version | Stainless steel |
----------
