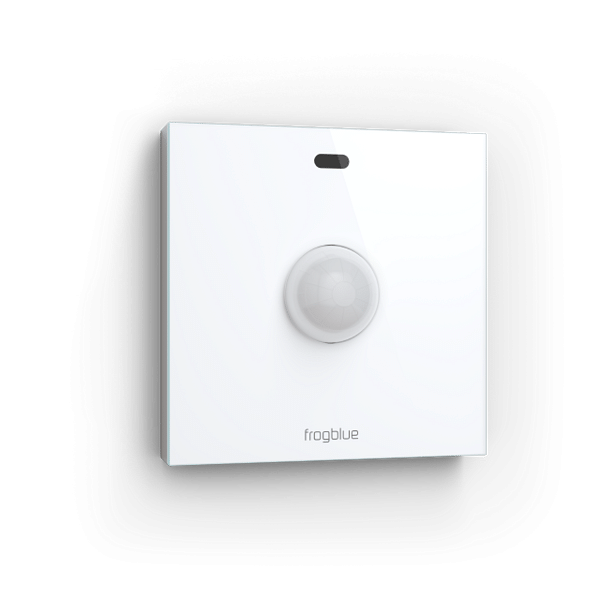

PIR sensor for motion detection in the room by means of passive IR sensor technology. With temperature, brightness and proximity sensor.
| Inputs | 1; for connecting potential-free contacts (switches, buttons, relays) |
| Outputs | 1 |
| Integrated logic module | Yes |
| Integrated configuration backup | Yes |
| Comfort and timer functions | Yes |
| Microphone | Yes |
| Loudspeaker | Yes |
| Proximity sensor | Yes, maximum range 1 metre |
| Room temperature sensor | Yes |
| Light sensor | Yes |
| Switching capacity | 1200 W / 1200 VA (220-240 V~) 600 W / 600 VA (110-219 V~) |
| Sound encoder | No |
| Intercom function | No |
| Passive infrared sensor (PIR sensor) | Yes |
| Size and Weight | |
|---|---|
| Dimensions (L x B x H) | 81 × 81 × 12 |
| Power supply | |
| Mains voltage | AC 110–240 V~ |
| Stand-by consumption | 1 Watt |
| Network | |
| WLAN | No |
| Bluetooth® | Bluetooth® 4.2 Low Energy |
| Frequency range | 2400-2483,5 MHz max. 0,1 dBm |
| Typical radio open field range | 30 Meter |
| Operation & Storage | |
| Ambient temperature | –25° bis +55°C |
| Storage temperature | –25°C bis +70°C |
| Air humidity (during operation) | (Non-condensing) |
| Connection | |
| Type of contact | μ, closing contact |
| Connection variants | potential-free switches/buttons, lamps, inductive load, electronic transformers |
| Connection type | Spring-type terminal (single wire) |
| Core cross-section | 1 - 1,5 mm2 (rigid, flexible without ferrule) / 0,2 - 0,5 mm2 (rigid) |
| Stripping length | 8 mm (1–1,5 mm²) / 6 mm (0,2–0,5 mm²) |
| Max. Cable length of the inputs ø 0,5mm² | 100 m |
| Packaging | |
| Packaging size | 1 unit, 10 units |
| EAN 1 unit | 4260578530323 |
| Packaging dimensions (L x B x H) 1 Stück | 140 × 130 × 60 mm |
| Weight including packaging 1 unit | 275 g |
| Mounting Type | |
| Mounting type | Surface mounted (in device socket according to DIN 49073) |
| Material data | |
| Weight | 145 g |
| Technical data | |
| Mains frequency | 50 / 60 Hz |
----------
