Digital. Interconnected. Intelligent Outdoor Lighting

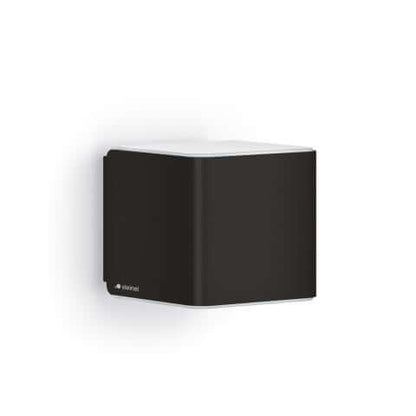

The Steinel L 840 LED Outdoor Wall Light combines modern elegance with advanced technology to transform any facade. These stylish lights not only enhance your exterior’s aesthetics but also deliver intelligent features designed for optimal performance and convenience.
- Concealed 160° iHF Sensor: Precisely detects human movement up to 5 metres while ignoring pets, leaves, and other non-relevant motion for reliable activation.
- Warm and Inviting Illumination: Emits a 3000 K warm-white glow, creating a welcoming ambiance for outdoor areas.
- Customisable Lighting Modes: Features a night-light function (10–50%), elegant soft light start, and a 4-hour manual override for tailored lighting control.
- Smart Bluetooth Connectivity: Wirelessly interconnect and manage multiple lights via the STEINEL app for a seamless lighting experience.
- Sophisticated Design Options: Available in three stylish designs with anthracite or silver finishes to complement any architectural style.
- Built for Durability: Engineered with premium materials to ensure lasting performance in all weather conditions.
The L 840 LED Outdoor Wall Light offers the perfect blend of style, technology, and energy efficiency, making it the ideal choice for modern outdoor lighting solutions.
| Dimensions (L x W x H) | 134 x 110 x 110 mm |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Sensor Technology | iHF (intelligent high-frequency technology) |
| Output | 9.1 W |
| Interconnection | Yes |
| Interconnection via | Bluetooth |
| Slave mode selectable | Yes |
| Luminous flux | 319 lm |
| Overall Product Efficiency | 35 lm/W |
| Colour temperature | 3000 K |
| Colour Rendering Index | 80-89 |
| With Lamp | YES,STEINEL LED System |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| LED life expectancy (25 °C) | > 60000 h |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 160 ° |
| Angle of aperture | 160 ° |
| Capability of masking out individual segments | Yes |
| Electronic scalability | Yes |
| Mechanical scalability | Yes |
| Continuous light | selectable, 4h |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Time setting | 5 s – 60 Min. |
| Basic light level function | Yes |
| Basic light level function time | 10/30 min, all night |
| Main light adjustable | 10 - 100 % |
| Functions | MotionMotions sensor, Selecting programmed lighting scenarios, Lighting scenario, Night economy modes sensor, Selecting |
| Soft light start | Yes |
| Impact resistance | IK03 |
| IP-rating | IP44 |
| Protection class | II |
| Ambient temperature | -20 – 40 °C |
| Housing material | Plastic |
| Cover material | Plastic, opal |
| Manufacturer's Warranty | 3 years |
| Settings via | Bluetooth, App, Smartphone |
| With remote control | No |
| Installation site | wall |
| Version | Anthracite |
| Possible Mounting Height | 1,8 - 2.5m |
----------
