Timeless Design Meets Advanced Technology

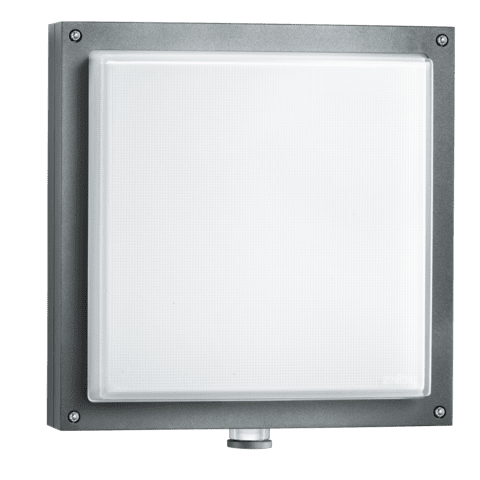

The Steinel L 690 LED Outdoor Sensor Light combines a classic square design with innovative LED and sensor technology. Perfect for modern homes and professional environments, this robust light delivers reliable performance, efficient illumination, and versatile functionality.
- Timeless Square Design: A universally popular shape that enhances any outdoor space with its sleek and modern aesthetic.
- Advanced LED Technology: Offers enhanced illumination characteristics while maintaining exceptional energy efficiency.
- Comprehensive Lighting Functions: Includes a basic light level function, soft light start, and adjustable time and twilight thresholds for personalised lighting control.
- Smart Motion Detection: Features a 360° infrared sensor with a maximum reach of 7 m and four intelligent sensor programmes.
- Durable Construction: Built with a robust aluminium base and impact-resistant (IK07) diffuser for long-lasting performance.
- Interconnectable Design: Easily connect multiple units via cable for larger lighting networks, making it ideal for professional applications.
The L 690 LED blends timeless design with cutting-edge technology, making it the perfect choice for stylish and efficient outdoor lighting.
| Dimensions (L x W x H) | 104 x 291 x 303 mm |
| Mains power supply | 220 - 240 V / 50 - 60 Hz |
| Sensor Technology | passive infrared |
| Output | 8,5 W |
| Interconnection | Yes |
| Interconnection via | Cable |
| Slave modeselectable | No |
| Luminous flux | 700 lm |
| Stroboscopic effect (SVM) | 1,3 SVM |
| Efficiency | 82 lm/W |
| Overall product efficiency | 82 lm/W |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index | 82 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| LED life expectancy (25 °C) | > 60000 h |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |
| Reach, radial | r = 1.5 m (7 m²) |
| Reach, tangential | r = 7 m (154 m²) |
| Continuous light | selectable, 4h |
| Photo-cell controller | Yes |
| Twilight setting | 2 - 1000 lx |
| Time setting | 5 s - 15 Min. |
| Basic light level function | Yes |
| Basic light level function time | 10/30 min, all night |
| Functions | 4 programme settings geared to practical needs, can be selected on removable sensor module |
| Soft light start | Yes |
| Impact resistance | IK07 |
| IP-rating | IP44 |
| Protection class | II |
| Ambient temperature | -20 - 50 °C |
| Housing material | Aluminium |
| Cover material | Plastic, opal |
| Manufacturer's Warranty | 5 years |
| Settings via | Potentiometers |
| With remote control | No |
| Installation site | wall |
| Cover material | shrouds |
| Version | PMMA anthracite |
----------
----------
