Type |

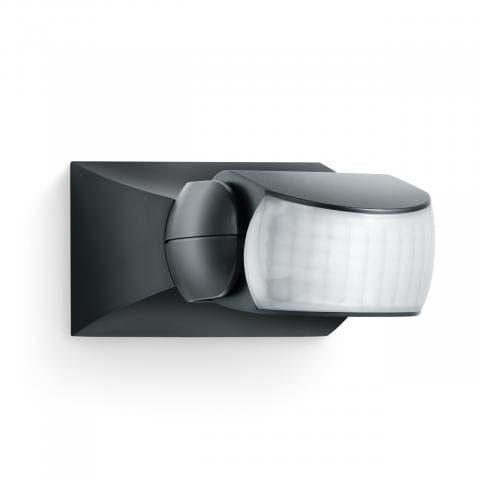

Motion detector |
Dimensions (L × W × H) |
120 × 80 × 50 mm |
Manufacturer's Warranty |
3 years |
Settings via |
Potentiometers |
With remote control |
No |
Version |
Black |
PU1, EAN |
4007841600419 |
Application (place) |
Indoors, Outdoors |
Application (room) |
Outdoors, front door, all round the building, terrace/balcony, courtyard & driveway |
Colour |
Black |
Colour (RAL) |
9005 |
Includes corner wall mount |
No |
Installation site |
Wall, Ceiling |
Installation |
Surface wiring, Wall, Ceiling |
IP rating |
IP54 |
Protection class |
II |
Ambient temperature |
-20 – 50 °C |
Material |
Plastic |
Mains power supply |
230 – 240 V / 50 Hz |
Max. output (resistive load) |
500 W |
Fluorescent lamps (electronic ballast) |
250 W |
Fluorescent lamps (uncorrected) |
500 VA |
Fluorescent lamps (series-corrected) |
500 VA |
Fluorescent lamps (parallel-corrected) |
500 VA |
Low-voltage halogen lamps |
500 VA |
LED lamps < 2 W |
100 W |
LED lamps > 2 W < 8 W |
125 W |
LED lamps > 8 W |
250 W |
Capacitive load |
88 µF |
Article number |
600419 |
European Article Number (EAN) |
4007841600419 |
Detection angle |
120° |
Angle of aperture |
40° |
Sensor technology |
Passive infrared, Light sensor |
Mounting height |
1.80 – 3.00 m |
Max. mounting height |
3.00 m |
Optimum mounting height |
2 m |
Sneak-by guard |
No |
Capability of masking out individual segments |
Yes |
Electronic scalability |
No |
Mechanical scalability |
No |
Reach (radial) |
3 m (9 m²) |
Reach (tangential) |
10 m (105 m²) |
Switching zones |
260 zones |
Twilight setting |
2 – 2000 lx |
Time setting |
8 s – 35 min |
Basic light level function |
No |
Main light adjustable |
No |
Twilight setting TEACH |
No |
Constant-lighting control |
No |
Interconnection |
Yes |
Type of interconnection |
Master/master |
Interconnection via |
Cable |
|
|
