Product Description
The Steinel IS 180 digi is an advanced infrared motion detector designed for precise outdoor applications. Its 180° detection angle and reach of up to 8 metres ensure comprehensive coverage for enhanced security and convenience. Users can customise the detection area by adjusting the three individually configurable zones, allowing for tailored monitoring that suits specific requirements. The device offers seamless wireless connectivity through Bluetooth Mesh, enabling easy setup, operation, and networking via the intuitive STEINEL Connect App. This feature allows for effortless integration into existing smart home systems and facilitates remote control and monitoring. The time and twilight threshold settings are steplessly adjustable, providing flexibility in operation and ensuring optimal performance under varying lighting conditions. Built with an IP54-rated housing, the IS 180 digi is engineered to withstand diverse weather conditions, ensuring reliable operation year-round. Its energy-efficient sensor technology contributes to reduced energy consumption, making it an eco-friendly choice for motion detection solutions. Additionally, the modern, flat design with discreet lens integration ensures that the device blends seamlessly with various architectural styles, maintaining the aesthetic appeal of your property.
| Category | Details |
|---|---|

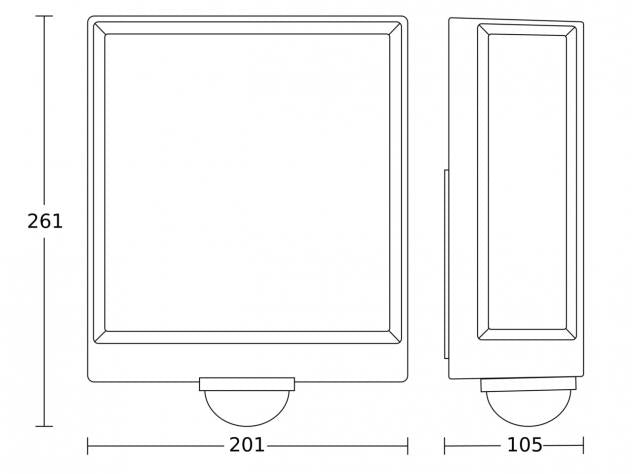

| Dimensions (L x W x H) | 105 x 201 x 261 mm |
| With lamp | Yes, STEINEL LED system |
| Manufacturer's Warranty | 3 years |
| Settings via | Connect Bluetooth Mesh |
| With remote control | No |
| Version | With motion detector & Bluetooth |
| PU1, EAN | 4007841085247 |
| Application, place | Outdoors |
| Application, room | Outdoor areas, entrances, terraces, pathways |
| Colour | Anthracite |
| Fixation/mounting | Surface wiring |
| Installation site | Wall |
| Impact resistance | IK03 |
| IP-rating | IP54 |
| Protection class | I |
| Ambient temperature | From -20 up to 40 °C |
| Housing material | Aluminium | Cover material | Plastic, opal |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Output | 12.9 W |
| Average rated life expectancy of power supply unit at 25°C | > 60,000 h |
| Mounting height max. | 2.50 m |
| Slave mode selectable | Yes |
| Electronic scalability | No |
| Mechanical scalability | Yes |
| Reach, radial | r = 4 m (25 m²) |
| Reach, tangential | r = 10 m (157 m²) |
| Optimum mounting height | 2 m |
| Detection angle | 180° |
| Photo-cell controller | Yes |
| Luminous flux total product | 1,057 lm |
| Measured luminous flux (360°) | 1,057 lm |
| Colour temperature | 3000 K |
| Lamp | LED cannot be replaced |
| Service life LED L70B50 (25°) | > 60,000 h |
| Soft light start | Yes |
| Continuous light | Selectable |
| Colour Rendering Index CRI | > 80 |
| Article number | 085247 |
| European Article Number (EAN) | 4007841085247 |
| Basic light level function in per cent | 0 – 100 % |
| Basic light level function percentage, from | 0 % |
| Basic light level function percentage, up to | 100 % |
| Functions | Motion sensor, Light sensor |
| Twilight setting | 2 – 2,000 lx |
| Time setting | 10 s – 60 min |
| Basic light level function | Yes |
| Basic light level function time | 10s – 60 min, OFF, Brightness-controlled |
| Main light adjustable | 10 – 100 % |
| Twilight setting TEACH | Yes |
| Interconnection | Yes |
| Type of interconnection | Master/master, Master/slave |
| Interconnection via | Bluetooth Mesh Connect |
| Product category | Sensor-switched LED outdoor light |
----------
